1. Product Fundamentals and Microstructural Characteristics of Alumina Ceramics
1.1 Composition, Pureness Grades, and Crystallographic Feature

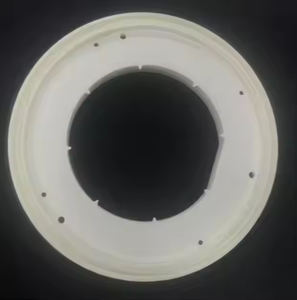

(Alumina Ceramic Wear Liners)
Alumina (Al Two O FIVE), or light weight aluminum oxide, is just one of one of the most widely made use of technological porcelains in industrial engineering as a result of its superb balance of mechanical strength, chemical stability, and cost-effectiveness.
When engineered right into wear liners, alumina porcelains are typically fabricated with purity levels varying from 85% to 99.9%, with higher purity representing enhanced firmness, wear resistance, and thermal performance.
The dominant crystalline phase is alpha-alumina, which adopts a hexagonal close-packed (HCP) structure characterized by strong ionic and covalent bonding, adding to its high melting factor (~ 2072 ° C )and reduced thermal conductivity.
Microstructurally, alumina porcelains include fine, equiaxed grains whose dimension and circulation are controlled throughout sintering to optimize mechanical residential properties.
Grain dimensions usually vary from submicron to a number of micrometers, with better grains typically boosting fracture toughness and resistance to fracture proliferation under unpleasant loading.
Minor ingredients such as magnesium oxide (MgO) are often presented in trace total up to hinder irregular grain development throughout high-temperature sintering, making certain consistent microstructure and dimensional security.
The resulting product displays a Vickers solidity of 1500– 2000 HV, significantly exceeding that of hardened steel (generally 600– 800 HV), making it exceptionally immune to surface degradation in high-wear atmospheres.
1.2 Mechanical and Thermal Performance in Industrial Conditions
Alumina ceramic wear linings are chosen primarily for their outstanding resistance to abrasive, erosive, and gliding wear mechanisms prevalent in bulk product managing systems.
They possess high compressive stamina (as much as 3000 MPa), excellent flexural toughness (300– 500 MPa), and superb tightness (Youthful’s modulus of ~ 380 GPa), allowing them to hold up against intense mechanical loading without plastic deformation.
Although inherently fragile compared to steels, their low coefficient of friction and high surface firmness decrease bit adhesion and reduce wear prices by orders of magnitude about steel or polymer-based alternatives.
Thermally, alumina preserves structural honesty as much as 1600 ° C in oxidizing atmospheres, allowing usage in high-temperature processing environments such as kiln feed systems, boiler ducting, and pyroprocessing tools.

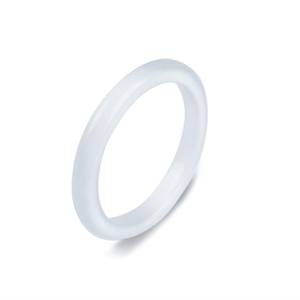

( Alumina Ceramic Wear Liners)
Its low thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional security during thermal biking, decreasing the threat of fracturing because of thermal shock when correctly set up.
Furthermore, alumina is electrically protecting and chemically inert to a lot of acids, alkalis, and solvents, making it ideal for destructive environments where metal liners would certainly deteriorate swiftly.
These mixed residential or commercial properties make alumina ceramics ideal for protecting vital facilities in mining, power generation, concrete production, and chemical handling markets.
2. Production Processes and Layout Assimilation Methods
2.1 Forming, Sintering, and Quality Control Protocols
The production of alumina ceramic wear liners entails a series of accuracy production steps created to achieve high thickness, minimal porosity, and constant mechanical efficiency.
Raw alumina powders are refined with milling, granulation, and forming methods such as completely dry pushing, isostatic pushing, or extrusion, depending on the wanted geometry– tiles, plates, pipelines, or custom-shaped sections.
Environment-friendly bodies are then sintered at temperatures in between 1500 ° C and 1700 ° C in air, promoting densification via solid-state diffusion and accomplishing relative densities going beyond 95%, usually coming close to 99% of theoretical density.
Complete densification is vital, as residual porosity functions as anxiety concentrators and accelerates wear and crack under service conditions.
Post-sintering procedures may include diamond grinding or splashing to achieve tight dimensional resistances and smooth surface coatings that reduce friction and bit capturing.
Each batch undertakes rigorous quality assurance, including X-ray diffraction (XRD) for phase analysis, scanning electron microscopy (SEM) for microstructural assessment, and firmness and bend screening to verify conformity with international standards such as ISO 6474 or ASTM B407.
2.2 Placing Techniques and System Compatibility Considerations
Reliable integration of alumina wear liners into industrial equipment needs careful attention to mechanical accessory and thermal development compatibility.
Usual setup approaches consist of adhesive bonding making use of high-strength ceramic epoxies, mechanical securing with studs or anchors, and embedding within castable refractory matrices.
Adhesive bonding is commonly utilized for flat or delicately rounded surface areas, providing uniform anxiety distribution and resonance damping, while stud-mounted systems permit very easy replacement and are chosen in high-impact zones.
To fit differential thermal expansion in between alumina and metal substrates (e.g., carbon steel), crafted gaps, adaptable adhesives, or compliant underlayers are incorporated to stop delamination or fracturing during thermal transients.
Developers have to also take into consideration side defense, as ceramic tiles are prone to chipping at revealed edges; services include beveled edges, steel shadows, or overlapping tile arrangements.
Proper setup guarantees lengthy service life and makes best use of the protective function of the liner system.
3. Use Mechanisms and Efficiency Evaluation in Service Environments
3.1 Resistance to Abrasive, Erosive, and Impact Loading
Alumina ceramic wear liners excel in atmospheres dominated by 3 main wear systems: two-body abrasion, three-body abrasion, and fragment erosion.
In two-body abrasion, tough particles or surfaces straight gouge the lining surface, an usual occurrence in chutes, hoppers, and conveyor transitions.
Three-body abrasion involves loosened bits caught between the liner and relocating product, resulting in rolling and scraping activity that slowly eliminates product.
Erosive wear occurs when high-velocity fragments impinge on the surface area, specifically in pneumatically-driven conveying lines and cyclone separators.
Due to its high firmness and low fracture durability, alumina is most efficient in low-impact, high-abrasion circumstances.
It carries out exceptionally well against siliceous ores, coal, fly ash, and cement clinker, where wear rates can be minimized by 10– 50 times compared to light steel linings.
Nevertheless, in applications entailing duplicated high-energy influence, such as key crusher chambers, crossbreed systems integrating alumina floor tiles with elastomeric supports or metallic shields are often employed to soak up shock and prevent crack.
3.2 Area Screening, Life Cycle Analysis, and Failing Setting Analysis
Efficiency assessment of alumina wear linings involves both lab testing and field monitoring.
Standard tests such as the ASTM G65 completely dry sand rubber wheel abrasion test provide comparative wear indices, while tailored slurry disintegration gears replicate site-specific problems.
In commercial settings, use price is commonly gauged in mm/year or g/kWh, with service life projections based upon first thickness and observed deterioration.
Failing settings consist of surface polishing, micro-cracking, spalling at sides, and full ceramic tile dislodgement because of adhesive degradation or mechanical overload.
Source analysis commonly exposes installation mistakes, improper quality selection, or unanticipated influence tons as key factors to early failing.
Life cycle expense analysis continually demonstrates that regardless of greater first costs, alumina liners provide superior overall cost of possession due to extensive substitute periods, minimized downtime, and reduced maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Executions Across Heavy Industries
Alumina ceramic wear liners are deployed across a broad spectrum of industrial industries where material degradation positions operational and financial obstacles.
In mining and mineral handling, they protect transfer chutes, mill linings, hydrocyclones, and slurry pumps from unpleasant slurries consisting of quartz, hematite, and various other difficult minerals.
In power plants, alumina tiles line coal pulverizer air ducts, central heating boiler ash hoppers, and electrostatic precipitator parts subjected to fly ash erosion.
Cement manufacturers utilize alumina linings in raw mills, kiln inlet areas, and clinker conveyors to fight the very rough nature of cementitious products.
The steel industry employs them in blast heating system feed systems and ladle shadows, where resistance to both abrasion and modest thermal lots is vital.
Also in less standard applications such as waste-to-energy plants and biomass handling systems, alumina porcelains offer resilient defense against chemically hostile and coarse materials.
4.2 Emerging Trends: Composite Equipments, Smart Liners, and Sustainability
Current research study focuses on boosting the sturdiness and capability of alumina wear systems with composite style.
Alumina-zirconia (Al Two O THREE-ZrO TWO) composites utilize makeover toughening from zirconia to enhance split resistance, while alumina-titanium carbide (Al ₂ O FOUR-TiC) grades provide enhanced performance in high-temperature moving wear.
One more development involves embedding sensing units within or underneath ceramic liners to check wear development, temperature, and effect frequency– allowing predictive maintenance and digital twin combination.
From a sustainability point of view, the extended service life of alumina liners reduces product intake and waste generation, straightening with round economy principles in industrial procedures.
Recycling of invested ceramic liners into refractory accumulations or building materials is additionally being explored to lessen ecological impact.
In conclusion, alumina ceramic wear linings represent a foundation of modern-day commercial wear protection modern technology.
Their extraordinary solidity, thermal stability, and chemical inertness, incorporated with fully grown production and installment practices, make them indispensable in combating product deterioration across hefty industries.
As product scientific research advancements and digital monitoring ends up being much more incorporated, the future generation of clever, resistant alumina-based systems will certainly further boost functional performance and sustainability in rough environments.
