1. Basics of Foam Generation and the Duty in Lightweight Concrete Systems
1.1 Principles of Air Entrainment and Cellular Structure Formation

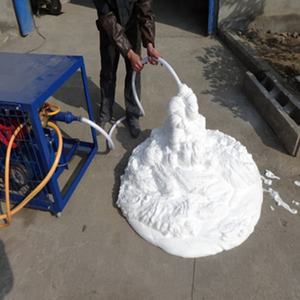

(Lightweight Concrete Foam Generators)
Light-weight concrete, a class of building and construction materials defined by reduced density and improved thermal insulation, counts essentially on the regulated introduction of air or gas spaces within a cementitious matrix– a procedure known as frothing.
The creation of these evenly dispersed, stable air cells is attained via the use of a specialized device called a foam generator, which creates fine, microscale bubbles that are subsequently mixed into the concrete slurry.
These bubbles, commonly ranging from 50 to 500 micrometers in diameter, end up being permanently entrained upon cement hydration, causing a cellular concrete structure with significantly lower device weight– usually in between 300 kg/m ³ and 1,800 kg/m ³– contrasted to conventional concrete (~ 2,400 kg/m SIX).
The foam generator is not simply an auxiliary device however a vital design component that establishes the high quality, consistency, and performance of the final lightweight concrete product.
The process begins with a liquid foaming representative, normally a protein-based or synthetic surfactant solution, which is introduced right into the generator where it is mechanically or pneumatically spread into a thick foam via high shear or compressed air shot.
The stability and bubble size distribution of the produced foam directly affect vital product residential properties such as compressive strength, thermal conductivity, and workability.
1.2 Category and Functional Mechanisms of Foam Generators
Foam generators are broadly classified into three primary types based upon their operational concepts: low-pressure (or wet-film), high-pressure (or vibrant), and rotating (or centrifugal) systems.
Low-pressure generators use a porous tool– such as a fine mesh, material, or ceramic plate– where pressed air is forced, producing bubbles as the foaming solution moves over the surface area.
This method creates fairly large, less uniform bubbles and is normally made use of for lower-grade applications where precise control is less critical.
High-pressure systems, in contrast, use a nozzle-based design where a high-velocity stream of pressed air shears the frothing fluid into a penalty, homogeneous foam with narrow bubble dimension circulation.
These systems offer premium control over foam density and stability, making them ideal for structural-grade lightweight concrete and precast applications.

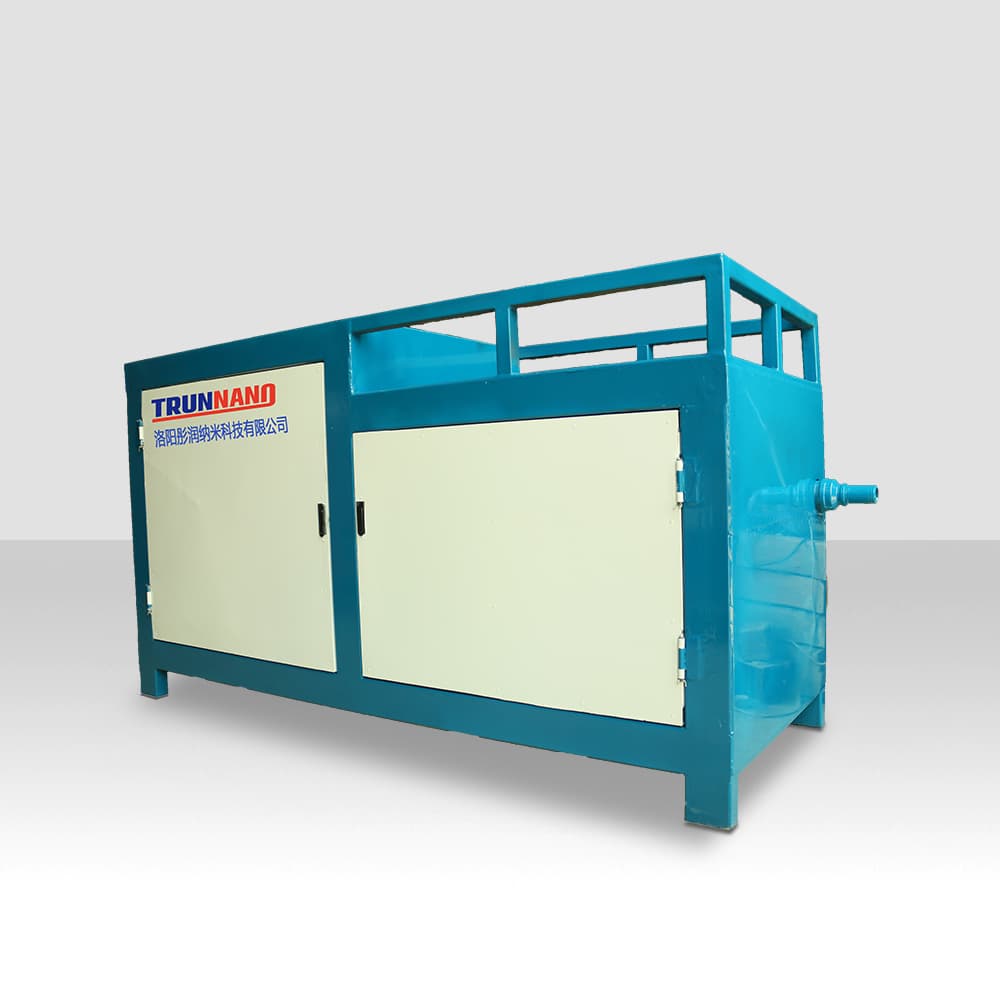

( Lightweight Concrete Foam Generators)
Rotary foam generators utilize a spinning disk or drum that flings the lathering solution right into a stream of air, developing bubbles through mechanical diffusion.
While much less precise than high-pressure systems, rotating generators are valued for their effectiveness, ease of upkeep, and continuous outcome, ideal for large-scale on-site pouring procedures.
The selection of foam generator kind depends upon project-specific demands, including wanted concrete thickness, production quantity, and efficiency specs.
2. Material Scientific Research Behind Foam Stability and Concrete Efficiency
2.1 Foaming Representatives and Interfacial Chemistry
The effectiveness of a foam generator is intrinsically connected to the chemical structure and physical actions of the frothing agent.
Foaming agents are surfactants that decrease the surface area tension of water, making it possible for the development of stable air-liquid interfaces.
Protein-based representatives, derived from hydrolyzed keratin or albumin, produce resilient, flexible foam films with outstanding stability and are often favored in architectural applications.
Synthetic representatives, such as alkyl sulfonates or ethoxylated alcohols, provide faster foam generation and reduced expense but might create less steady bubbles under extended mixing or damaging ecological conditions.
The molecular structure of the surfactant determines the density and mechanical toughness of the lamellae (thin fluid movies) surrounding each bubble, which have to stand up to coalescence and drainage during blending and curing.
Additives such as thickness modifiers, stabilizers, and pH barriers are commonly integrated right into frothing solutions to boost foam persistence and compatibility with cement chemistry.
2.2 Impact of Foam Characteristics on Concrete Characteristic
The physical qualities of the produced foam– bubble dimension, size distribution, air web content, and foam thickness– directly determine the macroscopic behavior of light-weight concrete.
Smaller sized, evenly distributed bubbles improve mechanical stamina by reducing stress concentration factors and producing a more uniform microstructure.
Alternatively, larger or irregular bubbles can work as problems, reducing compressive stamina and enhancing leaks in the structure.
Foam security is equally vital; early collapse or coalescence throughout blending cause non-uniform density, segregation, and decreased insulation efficiency.
The air-void system also affects thermal conductivity, with finer, closed-cell frameworks offering exceptional insulation due to entraped air’s low thermal diffusivity.
In addition, the water content of the foam influences the water-cement proportion of the final mix, necessitating specific calibration to avoid damaging the cement matrix or delaying hydration.
Advanced foam generators now include real-time surveillance and feedback systems to preserve consistent foam result, making sure reproducibility across batches.
3. Integration in Modern Building And Construction and Industrial Applications
3.1 Architectural and Non-Structural Uses of Foamed Concrete
Lightweight concrete created by means of foam generators is used throughout a wide spectrum of construction applications, ranging from insulation panels and void filling to load-bearing walls and pavement systems.
In structure envelopes, frothed concrete offers excellent thermal and acoustic insulation, contributing to energy-efficient layouts and lowered heating and cooling tons.
Its reduced density also decreases structural dead tons, permitting smaller sized foundations and longer spans in high-rise and bridge building.
In civil design, it is used for trench backfilling, tunneling, and slope stablizing, where its self-leveling and low-stress characteristics avoid ground disturbance and enhance safety and security.
Precast makers utilize high-precision foam generators to generate lightweight blocks, panels, and building elements with tight dimensional resistances and constant quality.
Furthermore, foamed concrete exhibits intrinsic fire resistance as a result of its reduced thermal conductivity and lack of natural elements, making it ideal for fire-rated assemblies and easy fire protection systems.
3.2 Automation, Scalability, and On-Site Manufacturing Systems
Modern construction demands quick, scalable, and dependable manufacturing of lightweight concrete, driving the integration of foam generators right into computerized batching and pumping systems.
Totally automated plants can synchronize foam generation with cement mixing, water application, and additive injection, making it possible for constant production with minimal human treatment.
Mobile foam generator units are progressively released on building sites, allowing for on-demand manufacture of foamed concrete straight at the factor of use, decreasing transportation expenses and material waste.
These systems are typically outfitted with digital controls, remote tracking, and data logging capabilities to make certain conformity with engineering specs and quality criteria.
The scalability of foam generation modern technology– from little portable devices to industrial-scale systems– sustains its adoption in both established and arising markets, advertising sustainable building techniques internationally.
4. Technical Improvements and Future Directions in Foam Generation
4.1 Smart Foam Generators and Real-Time Process Control
Emerging developments in foam generator layout concentrate on improving accuracy, efficiency, and adaptability via digitalization and sensing unit assimilation.
Smart foam generators equipped with pressure sensors, flow meters, and optical bubble analyzers can dynamically readjust air-to-liquid proportions and screen foam top quality in real time.
Artificial intelligence formulas are being discovered to forecast foam behavior based upon environmental conditions, resources variations, and historic performance information.
Such innovations intend to reduce batch-to-batch irregularity and maximize material efficiency, particularly in high-stakes applications like nuclear securing or offshore construction.
4.2 Sustainability, Environmental Effect, and Eco-friendly Material Combination
As the building and construction market moves toward decarbonization, foam generators play a role in decreasing the environmental footprint of concrete.
By lowering material density, much less concrete is needed per unit quantity, directly decreasing carbon monoxide â‚‚ discharges related to cement production.
Moreover, foamed concrete can incorporate supplementary cementitious products (SCMs) such as fly ash, slag, or silica fume, improving sustainability without jeopardizing efficiency.
Study is likewise underway to establish bio-based foaming agents derived from sustainable sources, decreasing reliance on petrochemical surfactants.
Future growths might include energy-efficient foam generation techniques, assimilation with carbon capture modern technologies, and recyclable concrete solutions allowed by stable cellular structures.
In conclusion, the light-weight concrete foam generator is much more than a mechanical gadget– it is an essential enabler of innovative material design in modern construction.
By precisely controlling the architecture of air voids at the microscale, it changes traditional concrete into a multifunctional, lasting, and high-performance product.
As innovation develops, foam generators will certainly remain to drive innovation in structure scientific research, infrastructure strength, and environmental stewardship.
