1. Basics of Silica Sol Chemistry and Colloidal Stability
1.1 Structure and Fragment Morphology
(Silica Sol)

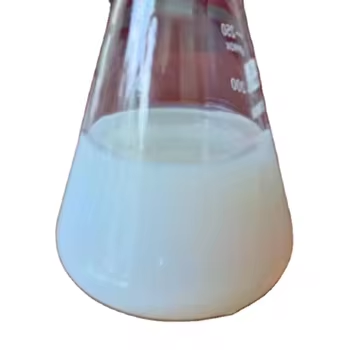

Silica sol is a steady colloidal dispersion containing amorphous silicon dioxide (SiO â‚‚) nanoparticles, normally ranging from 5 to 100 nanometers in diameter, put on hold in a liquid stage– most commonly water.
These nanoparticles are made up of a three-dimensional network of SiO â‚„ tetrahedra, developing a permeable and highly reactive surface rich in silanol (Si– OH) groups that regulate interfacial actions.
The sol state is thermodynamically metastable, maintained by electrostatic repulsion between charged particles; surface area cost develops from the ionization of silanol groups, which deprotonate over pH ~ 2– 3, yielding adversely billed bits that repel one another.
Particle shape is normally spherical, though synthesis conditions can affect gathering propensities and short-range ordering.
The high surface-area-to-volume proportion– frequently surpassing 100 m ²/ g– makes silica sol incredibly reactive, allowing strong communications with polymers, metals, and biological particles.
1.2 Stabilization Devices and Gelation Transition
Colloidal stability in silica sol is largely controlled by the balance in between van der Waals appealing forces and electrostatic repulsion, explained by the DLVO (Derjaguin– Landau– Verwey– Overbeek) concept.
At reduced ionic toughness and pH worths over the isoelectric point (~ pH 2), the zeta possibility of bits is completely unfavorable to avoid aggregation.
However, enhancement of electrolytes, pH change toward neutrality, or solvent evaporation can screen surface area fees, reduce repulsion, and set off particle coalescence, resulting in gelation.
Gelation entails the development of a three-dimensional network via siloxane (Si– O– Si) bond formation between surrounding fragments, changing the fluid sol right into an inflexible, permeable xerogel upon drying out.
This sol-gel shift is reversible in some systems yet usually results in irreversible architectural adjustments, forming the basis for advanced ceramic and composite fabrication.
2. Synthesis Pathways and Refine Control
( Silica Sol)
2.1 Stöber Technique and Controlled Development
One of the most widely acknowledged method for producing monodisperse silica sol is the Sțber process, created in 1968, which involves the hydrolysis and condensation of alkoxysilanesРnormally tetraethyl orthosilicate (TEOS)Рin an alcoholic medium with liquid ammonia as a driver.
By exactly managing criteria such as water-to-TEOS proportion, ammonia concentration, solvent composition, and response temperature, fragment size can be tuned reproducibly from ~ 10 nm to over 1 µm with slim size distribution.
The mechanism continues via nucleation adhered to by diffusion-limited growth, where silanol teams condense to develop siloxane bonds, developing the silica structure.
This approach is perfect for applications requiring uniform spherical bits, such as chromatographic supports, calibration criteria, and photonic crystals.
2.2 Acid-Catalyzed and Biological Synthesis Courses
Alternative synthesis techniques consist of acid-catalyzed hydrolysis, which prefers straight condensation and results in more polydisperse or aggregated particles, frequently used in industrial binders and finishes.
Acidic problems (pH 1– 3) promote slower hydrolysis yet faster condensation in between protonated silanols, bring about uneven or chain-like structures.
A lot more lately, bio-inspired and green synthesis strategies have actually emerged, using silicatein enzymes or plant extracts to precipitate silica under ambient conditions, lowering energy intake and chemical waste.
These lasting methods are obtaining passion for biomedical and environmental applications where purity and biocompatibility are essential.
In addition, industrial-grade silica sol is often generated through ion-exchange processes from sodium silicate options, adhered to by electrodialysis to get rid of alkali ions and support the colloid.
3. Functional Properties and Interfacial Behavior
3.1 Surface Sensitivity and Alteration Techniques
The surface area of silica nanoparticles in sol is dominated by silanol groups, which can take part in hydrogen bonding, adsorption, and covalent implanting with organosilanes.
Surface area alteration using coupling agents such as 3-aminopropyltriethoxysilane (APTES) or methyltrimethoxysilane introduces practical teams (e.g.,– NH TWO,– CH FIVE) that modify hydrophilicity, sensitivity, and compatibility with natural matrices.
These alterations allow silica sol to function as a compatibilizer in crossbreed organic-inorganic compounds, boosting diffusion in polymers and improving mechanical, thermal, or barrier residential or commercial properties.
Unmodified silica sol shows solid hydrophilicity, making it optimal for liquid systems, while modified versions can be distributed in nonpolar solvents for specialized finishes and inks.
3.2 Rheological and Optical Characteristics
Silica sol dispersions commonly display Newtonian circulation behavior at low concentrations, yet viscosity boosts with fragment loading and can change to shear-thinning under high solids web content or partial aggregation.
This rheological tunability is made use of in finishings, where regulated flow and progressing are necessary for uniform film formation.
Optically, silica sol is transparent in the visible range due to the sub-wavelength dimension of fragments, which decreases light spreading.
This openness permits its use in clear coatings, anti-reflective movies, and optical adhesives without jeopardizing aesthetic quality.
When dried out, the resulting silica movie keeps openness while offering firmness, abrasion resistance, and thermal stability as much as ~ 600 ° C.
4. Industrial and Advanced Applications
4.1 Coatings, Composites, and Ceramics
Silica sol is thoroughly used in surface area coverings for paper, fabrics, steels, and building materials to boost water resistance, scratch resistance, and longevity.
In paper sizing, it enhances printability and dampness barrier properties; in shop binders, it changes natural materials with eco-friendly inorganic alternatives that disintegrate cleanly during spreading.
As a precursor for silica glass and porcelains, silica sol allows low-temperature manufacture of thick, high-purity components by means of sol-gel handling, avoiding the high melting point of quartz.
It is likewise utilized in investment spreading, where it develops strong, refractory molds with fine surface finish.
4.2 Biomedical, Catalytic, and Power Applications
In biomedicine, silica sol serves as a system for medicine distribution systems, biosensors, and diagnostic imaging, where surface area functionalization permits targeted binding and controlled release.
Mesoporous silica nanoparticles (MSNs), derived from templated silica sol, offer high loading ability and stimuli-responsive release devices.
As a stimulant assistance, silica sol supplies a high-surface-area matrix for debilitating steel nanoparticles (e.g., Pt, Au, Pd), enhancing diffusion and catalytic performance in chemical makeovers.
In power, silica sol is used in battery separators to boost thermal stability, in gas cell membrane layers to boost proton conductivity, and in photovoltaic panel encapsulants to safeguard versus wetness and mechanical tension.
In recap, silica sol stands for a fundamental nanomaterial that links molecular chemistry and macroscopic functionality.
Its controllable synthesis, tunable surface area chemistry, and functional processing allow transformative applications across markets, from sustainable manufacturing to sophisticated healthcare and energy systems.
As nanotechnology develops, silica sol continues to work as a design system for designing smart, multifunctional colloidal products.
