1. Product Basics and Architectural Feature
1.1 Crystal Chemistry and Polymorphism

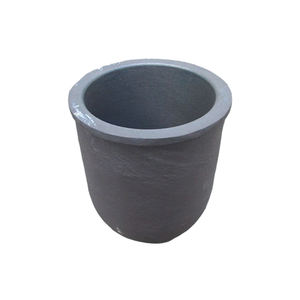

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms prepared in a tetrahedral latticework, forming among the most thermally and chemically durable products recognized.
It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most pertinent for high-temperature applications.
The strong Si– C bonds, with bond power going beyond 300 kJ/mol, provide exceptional firmness, thermal conductivity, and resistance to thermal shock and chemical assault.
In crucible applications, sintered or reaction-bonded SiC is favored due to its ability to preserve architectural integrity under severe thermal gradients and destructive molten atmospheres.
Unlike oxide porcelains, SiC does not undertake disruptive stage changes approximately its sublimation factor (~ 2700 ° C), making it suitable for sustained operation over 1600 ° C.
1.2 Thermal and Mechanical Efficiency
A defining feature of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which advertises uniform warm circulation and reduces thermal tension during fast home heating or cooling.
This property contrasts sharply with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are vulnerable to cracking under thermal shock.
SiC likewise displays exceptional mechanical toughness at elevated temperature levels, keeping over 80% of its room-temperature flexural toughness (up to 400 MPa) even at 1400 ° C.
Its low coefficient of thermal expansion (~ 4.0 × 10 ⁻⁶/ K) further boosts resistance to thermal shock, an important factor in repeated cycling between ambient and operational temperatures.
In addition, SiC demonstrates premium wear and abrasion resistance, guaranteeing long life span in settings entailing mechanical handling or stormy thaw flow.
2. Production Approaches and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Methods
Industrial SiC crucibles are primarily produced with pressureless sintering, response bonding, or warm pressing, each offering distinct advantages in cost, purity, and performance.
Pressureless sintering includes condensing great SiC powder with sintering aids such as boron and carbon, adhered to by high-temperature therapy (2000– 2200 ° C )in inert ambience to achieve near-theoretical density.
This technique yields high-purity, high-strength crucibles suitable for semiconductor and advanced alloy handling.
Reaction-bonded SiC (RBSC) is generated by infiltrating a porous carbon preform with liquified silicon, which reacts to develop β-SiC in situ, resulting in a compound of SiC and recurring silicon.
While slightly reduced in thermal conductivity due to metal silicon additions, RBSC offers exceptional dimensional security and reduced manufacturing expense, making it preferred for large industrial usage.
Hot-pressed SiC, though a lot more costly, gives the highest density and purity, reserved for ultra-demanding applications such as single-crystal development.
2.2 Surface Area High Quality and Geometric Precision
Post-sintering machining, including grinding and washing, makes certain precise dimensional resistances and smooth inner surfaces that reduce nucleation websites and lower contamination threat.
Surface roughness is meticulously regulated to prevent thaw bond and help with easy release of strengthened products.
Crucible geometry– such as wall surface thickness, taper angle, and lower curvature– is maximized to stabilize thermal mass, architectural toughness, and compatibility with furnace burner.
Custom designs accommodate details melt volumes, heating accounts, and product reactivity, guaranteeing ideal performance throughout varied industrial processes.
Advanced quality assurance, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic screening, confirms microstructural homogeneity and absence of flaws like pores or cracks.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Aggressive Atmospheres
SiC crucibles show extraordinary resistance to chemical attack by molten metals, slags, and non-oxidizing salts, exceeding conventional graphite and oxide ceramics.
They are steady touching molten aluminum, copper, silver, and their alloys, standing up to wetting and dissolution because of reduced interfacial energy and formation of safety surface oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles avoid metallic contamination that might degrade digital homes.
Nevertheless, under extremely oxidizing conditions or in the presence of alkaline fluxes, SiC can oxidize to create silica (SiO ₂), which may react additionally to develop low-melting-point silicates.
Therefore, SiC is finest fit for neutral or lowering atmospheres, where its security is made best use of.
3.2 Limitations and Compatibility Considerations
Regardless of its toughness, SiC is not generally inert; it responds with particular liquified products, particularly iron-group steels (Fe, Ni, Carbon monoxide) at high temperatures through carburization and dissolution procedures.
In liquified steel processing, SiC crucibles deteriorate rapidly and are consequently stayed clear of.
In a similar way, antacids and alkaline earth metals (e.g., Li, Na, Ca) can decrease SiC, releasing carbon and developing silicides, restricting their use in battery material synthesis or reactive steel spreading.
For molten glass and ceramics, SiC is generally suitable but might present trace silicon into very sensitive optical or digital glasses.
Recognizing these material-specific interactions is vital for selecting the ideal crucible kind and guaranteeing process pureness and crucible long life.
4. Industrial Applications and Technological Advancement
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are essential in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they stand up to prolonged exposure to thaw silicon at ~ 1420 ° C.
Their thermal stability makes sure uniform condensation and reduces dislocation density, directly affecting photovoltaic effectiveness.
In factories, SiC crucibles are utilized for melting non-ferrous metals such as aluminum and brass, providing longer service life and decreased dross formation compared to clay-graphite choices.
They are also used in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of sophisticated porcelains and intermetallic compounds.
4.2 Future Fads and Advanced Material Assimilation
Emerging applications consist of using SiC crucibles in next-generation nuclear materials testing and molten salt reactors, where their resistance to radiation and molten fluorides is being evaluated.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y TWO O SIX) are being related to SiC surfaces to even more boost chemical inertness and prevent silicon diffusion in ultra-high-purity processes.
Additive manufacturing of SiC components using binder jetting or stereolithography is under advancement, encouraging facility geometries and quick prototyping for specialized crucible layouts.
As demand expands for energy-efficient, long lasting, and contamination-free high-temperature processing, silicon carbide crucibles will certainly remain a keystone modern technology in sophisticated products manufacturing.
To conclude, silicon carbide crucibles stand for a critical enabling part in high-temperature industrial and scientific processes.
Their unparalleled combination of thermal security, mechanical strength, and chemical resistance makes them the material of choice for applications where efficiency and integrity are paramount.
