1. Intro to Oil Immersed Transformers
In the detailed web of our modern electric grid, transformers play a vital duty, silently stepping voltage backwards and forwards to make sure electricity can be transferred efficiently over long distances and dispersed securely to our homes and markets. Amongst the various types available, the oil submersed transformer stands as a testament to tried and tested integrity and durability. For decades, these workhorses have created the backbone of power systems worldwide.
An oil immersed transformer is a sort of electrical transformer that utilizes a customized protecting oil as both a coolant and a protecting medium. This style is mostly made use of for tool to high-power applications, making it a cornerstone of electrical framework. This overview dives deep right into the world of oil immersed power transformers and oil submersed circulation transformers, exploring their modern technology, applications, and their progressing duty in a period of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil immersed transformer includes a magnetic core and copper or light weight aluminum windings housed inside a secured storage tank filled with shielding oil. The primary function of the oil is twofold:
1. Insulation: The oil possesses high dielectric toughness, successfully insulating the high-voltage windings from the transformer’s core and grounded storage tank. This prevents short circuits and electric breakdowns.
2. Cooling: As the transformer operates, the windings generate substantial heat as a result of I ² R losses. The flowing oil absorbs this heat, convects it to the transformer’s tank walls, and dissipates it into the bordering air. Larger devices frequently feature radiators or fins to enhance the surface area for much more reliable cooling.
This dual-purpose use of oil makes the oil immersed transformer exceptionally efficient and robust, efficient in dealing with high lots and holding up against short-term overloads much better than several dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these devices are oil submersed transformers, they offer distinctive functions within the power system network. Comprehending the difference is vital.
An oil immersed power transformer is a heavyweight, generally made use of in transmission networks at generating stations and significant substations. Their primary duty is to “step-up” the voltage generated at the nuclear power plant to very high degrees (e.g., 138 kV, 230 kV, 500 kV and over) for efficient long-distance transmission, and to “step-down” the voltage at getting substations for further distribution. They are defined by their really high power rankings (often going beyond 100 MVA), intricate building and construction, and on-load tap changers for voltage regulation.
An oil immersed circulation transformer, on the various other hand, carries out the last step in the power delivery chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it down to the reduced voltages (e.g., 400/230 V) used by business and property customers. You commonly find them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have reduced power scores (commonly up to 2,500 kVA), and are designed for optimal efficiency at reduced, extra consistent tons.

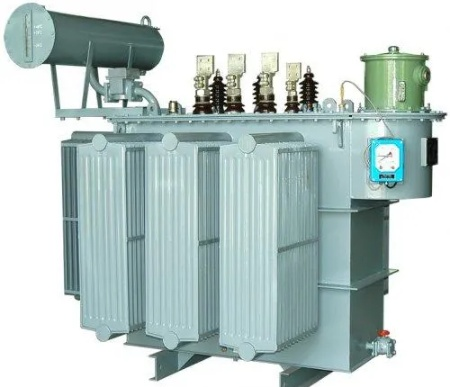

(Oil immersed power transformer)
2. Key Benefits of Oil Immersed Transformers
The enduring popularity of the oil submersed transformer is not unintentional. It supplies a collection of engaging advantages that make it the favored option for lots of demanding applications.
2.1 Superior Cooling and Overload Ability
The exceptional thermal ability of oil compared to air permits an oil immersed power transformer to manage and dissipate warm much more properly. This equates to a higher overload capacity. During periods of height power demand, an oil immersed transformer can manage momentary overloads without receiving damage, a critical function for keeping grid security. The oil’s blood circulation ensures also warmth distribution, stopping local locations that can break down insulation gradually.
2.2 Improved Insulation and Long Life Span
The combination of top notch mineral oil and diligently impregnated paper insulation produces a dielectric system of exceptional toughness. This durable insulation system protects the transformer from voltage surges and transients, contributing to an operational life expectancy that can include 30-40 years or more with appropriate upkeep. The sealed storage tank additionally secures the inner parts from dampness, dust, and various other climatic impurities.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil immersed transformer is usually the most economical selection. The products utilized– mineral oil, steel storage tank, and copper/aluminum windings– provide a desirable balance of performance and cost. The high effectiveness of these transformers, specifically at their ranked load, leads to reduced power losses over their lifetime, resulting in significant cost financial savings for utility companies and large industrial users.
3. Hot Topics and Future Trends
The globe of oil immersed transformers is not static. It is constantly developing to satisfy new challenges and incorporate with modern-day technologies.
3.1 Biodegradable and Fireproof Oils
Environmental and security issues are driving a significant shift away from conventional mineral oil. The market is rapidly embracing oil submersed transformers filled with naturally degradable esters (artificial or all-natural). These oils provide a greater fire factor (making them K-class fire-resistant), are much less toxic, and are easily naturally degradable, dramatically reducing the environmental influence in case of a leak. This pattern is making oil submersed circulation transformers much safer for setup in urban locations and ecologically delicate locations.
3.2 Assimilation with Smart Grids and IoT
The modern oil engaged power transformer is coming to be an intelligent node in the clever grid. Sensing units are being incorporated to monitor key specifications in real-time, including:
Dissolved Gas Analysis (DGA): Discovering fault gases generated within the oil to predict incipient mistakes.
Temperature Surveillance: Tracking top-oil and hotspot temperature levels.
Lots and Power Quality Tracking.
This information, transmitted using IoT (Web of Points) systems, enables predictive upkeep, stops unexpected interruptions, and maximizes transformer application and life expectancy.
3.3 Supporting the Renewable Energy Change
The worldwide promote renewables is creating new need for oil submersed transformers. Large-scale solar ranches and wind power setups need robust oil immersed power transformers to tip up the created voltage to transmission levels. In addition, the recurring nature of renewables locations better stress on grid elements, and the tried and tested integrity and overload capability of oil immersed transformers make them ideal for this essential duty.
4. Option and Upkeep Finest Practices
Picking the best transformer and keeping it appropriately is essential to a trusted power system.
4.1 Exactly how to Select the Right Oil Immersed Transformer
Selecting between an oil submersed power transformer and an oil submersed distribution transformer depends on the application. Secret factors to consider include:
1. Voltage Level and kVA Rating: Suit the transformer’s specifications to your system’s needs.
2. Application: Transmission substation, plant, or business circulation.
3. Location: Indoor vs. outside, ecological conditions, and fire safety and security regulations (which might influence the selection of protecting oil).
4. Efficiency Specifications: Adhere to local effectiveness standards like DOE (United States) or EU CoC (Europe).
5. Budget: Think about both the preliminary funding expense and the overall cost of ownership, including losses.

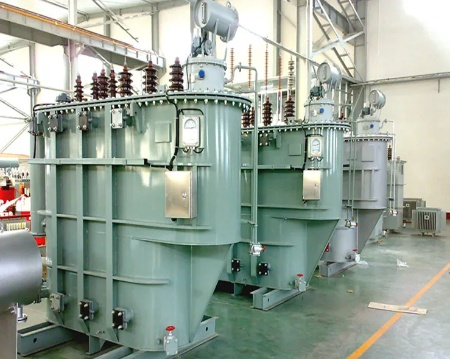

(Oil immersed distribution transformer)
4.2 Essential Upkeep for Long Life
Proactive maintenance is vital for any kind of oil submersed transformer. A detailed program ought to consist of:
1. Normal Oil Sampling and Screening: Routine DGA and screening of dielectric toughness and dampness content are one of the most reliable means to analyze the wellness of the transformer.
2. Bushing and Insulation Evaluation: Visual look for splits, contamination, or leaks.
3. Faucet Changer Maintenance: Normal assessment and maintenance of on-load or off-load tap changers.
4. Maintain it Tidy and Dry: Making sure the container exterior, radiators, and breathers are tidy and useful.
The oil submersed transformer, in its roles as both a high-capacity oil submersed power transformer and a common oil submersed distribution transformer, remains an irreplaceable element of our international power facilities. Its tested layout, paired with ongoing innovations in insulating fluids and electronic surveillance, ensures it will continue to be a reputable, reliable, and smart option for powering our globe for years to come. As we build the grids of the future, incorporating even more renewables and electronic intelligence, the durable and versatile oil immersed transformer will definitely go to the heart of it.
