1. The Scientific research and Framework of Alumina Ceramic Materials
1.1 Crystallography and Compositional Versions of Aluminum Oxide

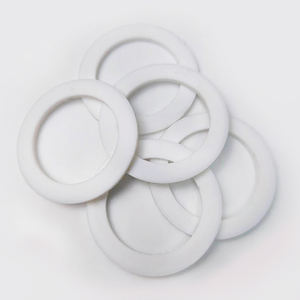

(Alumina Ceramics Rings)
Alumina ceramic rings are produced from aluminum oxide (Al two O TWO), a compound renowned for its extraordinary balance of mechanical strength, thermal security, and electrical insulation.
One of the most thermodynamically secure and industrially appropriate stage of alumina is the alpha (α) phase, which crystallizes in a hexagonal close-packed (HCP) structure coming from the corundum family members.
In this plan, oxygen ions develop a thick lattice with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial sites, causing a highly steady and robust atomic framework.
While pure alumina is in theory 100% Al Two O ₃, industrial-grade materials commonly include small percents of additives such as silica (SiO TWO), magnesia (MgO), or yttria (Y TWO O ₃) to manage grain development throughout sintering and enhance densification.
Alumina ceramics are categorized by purity levels: 96%, 99%, and 99.8% Al Two O six are common, with greater purity correlating to boosted mechanical homes, thermal conductivity, and chemical resistance.
The microstructure– particularly grain size, porosity, and phase distribution– plays an essential duty in figuring out the final efficiency of alumina rings in service environments.
1.2 Key Physical and Mechanical Feature
Alumina ceramic rings show a collection of residential or commercial properties that make them important popular industrial settings.
They possess high compressive stamina (approximately 3000 MPa), flexural stamina (usually 350– 500 MPa), and exceptional solidity (1500– 2000 HV), allowing resistance to put on, abrasion, and deformation under load.
Their reduced coefficient of thermal growth (approximately 7– 8 × 10 ⁻⁶/ K) guarantees dimensional stability across vast temperature level ranges, minimizing thermal stress and anxiety and breaking throughout thermal biking.
Thermal conductivity ranges from 20 to 30 W/m · K, depending upon purity, allowing for moderate heat dissipation– adequate for many high-temperature applications without the need for active cooling.

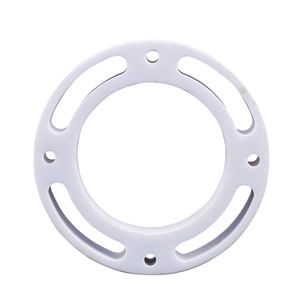

( Alumina Ceramics Ring)
Electrically, alumina is an exceptional insulator with a volume resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric toughness of around 10– 15 kV/mm, making it excellent for high-voltage insulation components.
Furthermore, alumina shows exceptional resistance to chemical attack from acids, alkalis, and molten steels, although it is at risk to attack by strong antacid and hydrofluoric acid at elevated temperature levels.
2. Manufacturing and Precision Engineering of Alumina Rings
2.1 Powder Processing and Forming Methods
The production of high-performance alumina ceramic rings starts with the choice and preparation of high-purity alumina powder.
Powders are generally synthesized using calcination of aluminum hydroxide or via advanced techniques like sol-gel handling to accomplish fine particle dimension and slim dimension distribution.
To develop the ring geometry, a number of shaping methods are employed, including:
Uniaxial pressing: where powder is compressed in a die under high pressure to form a “green” ring.
Isostatic pressing: applying consistent stress from all instructions utilizing a fluid tool, leading to greater thickness and even more consistent microstructure, specifically for complex or big rings.
Extrusion: suitable for long round kinds that are later on cut into rings, commonly used for lower-precision applications.
Shot molding: utilized for intricate geometries and limited resistances, where alumina powder is mixed with a polymer binder and infused into a mold.
Each approach influences the final density, grain positioning, and flaw distribution, necessitating careful process option based on application needs.
2.2 Sintering and Microstructural Advancement
After forming, the eco-friendly rings undertake high-temperature sintering, normally between 1500 ° C and 1700 ° C in air or managed atmospheres.
Throughout sintering, diffusion devices drive particle coalescence, pore removal, and grain growth, bring about a totally dense ceramic body.
The price of home heating, holding time, and cooling down account are precisely managed to avoid splitting, warping, or overstated grain growth.
Additives such as MgO are often presented to inhibit grain boundary mobility, resulting in a fine-grained microstructure that improves mechanical toughness and reliability.
Post-sintering, alumina rings might go through grinding and lapping to achieve tight dimensional resistances ( ± 0.01 mm) and ultra-smooth surface area coatings (Ra < 0.1 µm), vital for sealing, bearing, and electrical insulation applications.
3. Functional Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are commonly utilized in mechanical systems as a result of their wear resistance and dimensional security.
Key applications include:
Sealing rings in pumps and shutoffs, where they stand up to erosion from abrasive slurries and corrosive fluids in chemical processing and oil & gas industries.
Birthing elements in high-speed or destructive settings where metal bearings would certainly degrade or require regular lubrication.
Overview rings and bushings in automation tools, offering reduced friction and long life span without the need for oiling.
Wear rings in compressors and generators, minimizing clearance between turning and fixed components under high-pressure problems.
Their ability to keep performance in completely dry or chemically hostile atmospheres makes them above lots of metal and polymer alternatives.
3.2 Thermal and Electrical Insulation Functions
In high-temperature and high-voltage systems, alumina rings act as important shielding components.
They are employed as:
Insulators in heating elements and heater components, where they sustain repellent wires while withstanding temperatures over 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, preventing electrical arcing while maintaining hermetic seals.
Spacers and assistance rings in power electronic devices and switchgear, separating conductive components in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave devices, where their reduced dielectric loss and high failure strength make sure signal integrity.
The combination of high dielectric toughness and thermal security allows alumina rings to operate accurately in environments where organic insulators would certainly break down.
4. Product Innovations and Future Expectation
4.1 Composite and Doped Alumina Systems
To further enhance efficiency, scientists and manufacturers are developing sophisticated alumina-based compounds.
Examples include:
Alumina-zirconia (Al Two O SIX-ZrO ₂) composites, which display boosted fracture toughness with change toughening mechanisms.
Alumina-silicon carbide (Al ₂ O FOUR-SiC) nanocomposites, where nano-sized SiC bits boost hardness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can customize grain limit chemistry to boost high-temperature stamina and oxidation resistance.
These hybrid materials expand the operational envelope of alumina rings into even more extreme problems, such as high-stress vibrant loading or quick thermal cycling.
4.2 Emerging Fads and Technical Combination
The future of alumina ceramic rings lies in clever integration and accuracy production.
Trends include:
Additive production (3D printing) of alumina parts, allowing complex inner geometries and personalized ring styles formerly unattainable through traditional approaches.
Practical grading, where make-up or microstructure differs across the ring to maximize performance in different areas (e.g., wear-resistant outer layer with thermally conductive core).
In-situ monitoring using ingrained sensors in ceramic rings for predictive upkeep in industrial equipment.
Boosted use in renewable resource systems, such as high-temperature gas cells and concentrated solar energy plants, where product reliability under thermal and chemical stress is paramount.
As markets demand greater performance, longer life-spans, and decreased upkeep, alumina ceramic rings will certainly continue to play a critical duty in making it possible for next-generation engineering options.
