1. Crystal Structure and Split Anisotropy
1.1 The 2H and 1T Polymorphs: Structural and Electronic Duality

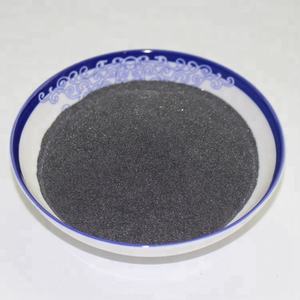

(Molybdenum Disulfide)
Molybdenum disulfide (MoS TWO) is a split transition steel dichalcogenide (TMD) with a chemical formula including one molybdenum atom sandwiched in between 2 sulfur atoms in a trigonal prismatic sychronisation, developing covalently bonded S– Mo– S sheets.
These individual monolayers are piled vertically and held together by weak van der Waals forces, enabling easy interlayer shear and exfoliation down to atomically slim two-dimensional (2D) crystals– a structural feature main to its varied useful functions.
MoS ₂ exists in several polymorphic types, the most thermodynamically steady being the semiconducting 2H stage (hexagonal symmetry), where each layer displays a straight bandgap of ~ 1.8 eV in monolayer kind that transitions to an indirect bandgap (~ 1.3 eV) in bulk, a phenomenon crucial for optoelectronic applications.
In contrast, the metastable 1T stage (tetragonal proportion) embraces an octahedral sychronisation and acts as a metal conductor due to electron contribution from the sulfur atoms, making it possible for applications in electrocatalysis and conductive composites.
Stage transitions in between 2H and 1T can be generated chemically, electrochemically, or with pressure design, providing a tunable system for developing multifunctional gadgets.
The ability to maintain and pattern these phases spatially within a single flake opens pathways for in-plane heterostructures with unique digital domain names.
1.2 Issues, Doping, and Edge States
The efficiency of MoS ₂ in catalytic and digital applications is very conscious atomic-scale problems and dopants.
Innate point defects such as sulfur openings work as electron donors, raising n-type conductivity and functioning as energetic websites for hydrogen advancement reactions (HER) in water splitting.
Grain limits and line flaws can either restrain cost transportation or create local conductive paths, depending on their atomic setup.
Regulated doping with change metals (e.g., Re, Nb) or chalcogens (e.g., Se) allows fine-tuning of the band structure, provider concentration, and spin-orbit combining effects.
Significantly, the sides of MoS ₂ nanosheets, specifically the metal Mo-terminated (10– 10) sides, exhibit substantially greater catalytic task than the inert basal plane, inspiring the style of nanostructured drivers with optimized edge exposure.
( Molybdenum Disulfide)
These defect-engineered systems exhibit how atomic-level adjustment can transform a naturally occurring mineral right into a high-performance useful material.
2. Synthesis and Nanofabrication Techniques
2.1 Bulk and Thin-Film Manufacturing Methods
All-natural molybdenite, the mineral type of MoS ₂, has actually been used for decades as a solid lubricating substance, however modern applications require high-purity, structurally regulated synthetic kinds.
Chemical vapor deposition (CVD) is the dominant method for generating large-area, high-crystallinity monolayer and few-layer MoS two films on substratums such as SiO ₂/ Si, sapphire, or flexible polymers.
In CVD, molybdenum and sulfur precursors (e.g., MoO four and S powder) are vaporized at high temperatures (700– 1000 ° C )in control atmospheres, enabling layer-by-layer growth with tunable domain name dimension and orientation.
Mechanical peeling (“scotch tape technique”) continues to be a standard for research-grade examples, producing ultra-clean monolayers with very little problems, though it does not have scalability.
Liquid-phase peeling, including sonication or shear blending of mass crystals in solvents or surfactant options, creates colloidal dispersions of few-layer nanosheets suitable for finishes, compounds, and ink formulas.
2.2 Heterostructure Combination and Gadget Pattern
Real capacity of MoS ₂ arises when integrated right into upright or side heterostructures with various other 2D products such as graphene, hexagonal boron nitride (h-BN), or WSe two.
These van der Waals heterostructures allow the layout of atomically precise devices, consisting of tunneling transistors, photodetectors, and light-emitting diodes (LEDs), where interlayer charge and energy transfer can be crafted.
Lithographic patterning and etching methods permit the construction of nanoribbons, quantum dots, and field-effect transistors (FETs) with network sizes to tens of nanometers.
Dielectric encapsulation with h-BN safeguards MoS two from environmental destruction and decreases charge scattering, substantially boosting carrier movement and tool security.
These fabrication advances are crucial for transitioning MoS ₂ from laboratory curiosity to viable element in next-generation nanoelectronics.
3. Useful Properties and Physical Mechanisms
3.1 Tribological Behavior and Strong Lubrication
One of the oldest and most long-lasting applications of MoS ₂ is as a completely dry strong lubricating substance in severe atmospheres where liquid oils stop working– such as vacuum cleaner, high temperatures, or cryogenic problems.
The reduced interlayer shear stamina of the van der Waals space enables easy gliding between S– Mo– S layers, leading to a coefficient of rubbing as low as 0.03– 0.06 under optimal problems.
Its efficiency is better boosted by solid attachment to metal surfaces and resistance to oxidation as much as ~ 350 ° C in air, past which MoO four development enhances wear.
MoS ₂ is extensively utilized in aerospace systems, air pump, and weapon parts, typically used as a covering using burnishing, sputtering, or composite unification right into polymer matrices.
Current research studies show that humidity can break down lubricity by enhancing interlayer bond, motivating research study into hydrophobic finishings or crossbreed lubes for better ecological security.
3.2 Electronic and Optoelectronic Action
As a direct-gap semiconductor in monolayer type, MoS ₂ shows strong light-matter interaction, with absorption coefficients going beyond 10 ⁵ centimeters ⁻¹ and high quantum return in photoluminescence.
This makes it excellent for ultrathin photodetectors with quick response times and broadband sensitivity, from noticeable to near-infrared wavelengths.
Field-effect transistors based upon monolayer MoS ₂ demonstrate on/off ratios > 10 eight and provider flexibilities as much as 500 cm ²/ V · s in put on hold examples, though substrate communications normally restrict practical values to 1– 20 cm TWO/ V · s.
Spin-valley coupling, a repercussion of solid spin-orbit communication and broken inversion symmetry, makes it possible for valleytronics– a novel standard for info inscribing using the valley level of liberty in energy area.
These quantum phenomena placement MoS ₂ as a candidate for low-power logic, memory, and quantum computing components.
4. Applications in Energy, Catalysis, and Emerging Technologies
4.1 Electrocatalysis for Hydrogen Evolution Response (HER)
MoS two has emerged as an encouraging non-precious option to platinum in the hydrogen advancement reaction (HER), an essential procedure in water electrolysis for environment-friendly hydrogen production.
While the basal airplane is catalytically inert, side websites and sulfur vacancies exhibit near-optimal hydrogen adsorption totally free energy (ΔG_H * ≈ 0), comparable to Pt.
Nanostructuring strategies– such as creating vertically aligned nanosheets, defect-rich films, or drugged hybrids with Ni or Co– optimize active site density and electrical conductivity.
When integrated into electrodes with conductive supports like carbon nanotubes or graphene, MoS two achieves high existing densities and lasting security under acidic or neutral conditions.
More enhancement is achieved by supporting the metal 1T phase, which boosts inherent conductivity and reveals extra active sites.
4.2 Versatile Electronics, Sensors, and Quantum Instruments
The mechanical flexibility, transparency, and high surface-to-volume ratio of MoS two make it suitable for versatile and wearable electronic devices.
Transistors, logic circuits, and memory gadgets have been demonstrated on plastic substrates, making it possible for flexible display screens, health and wellness screens, and IoT sensors.
MoS TWO-based gas sensors display high sensitivity to NO ₂, NH FOUR, and H ₂ O as a result of bill transfer upon molecular adsorption, with feedback times in the sub-second variety.
In quantum innovations, MoS ₂ hosts localized excitons and trions at cryogenic temperatures, and strain-induced pseudomagnetic areas can trap providers, making it possible for single-photon emitters and quantum dots.
These developments highlight MoS ₂ not only as a practical product but as a platform for checking out essential physics in decreased measurements.
In recap, molybdenum disulfide exhibits the convergence of timeless materials science and quantum design.
From its old role as a lubricating substance to its contemporary implementation in atomically thin electronic devices and power systems, MoS two continues to redefine the boundaries of what is possible in nanoscale materials style.
As synthesis, characterization, and integration methods advancement, its impact across scientific research and modern technology is positioned to increase also additionally.
