Introduction to Aluminum Nitride Ceramics

Aluminum nitride (AlN) is a high-performance ceramic material that has obtained widespread acknowledgment for its outstanding thermal conductivity, electrical insulation, and mechanical security at raised temperatures. With a hexagonal wurtzite crystal structure, AlN shows a special mix of buildings that make it the most excellent substratum material for applications in electronic devices, optoelectronics, power components, and high-temperature atmospheres. Its capability to effectively dissipate heat while preserving outstanding dielectric strength positions AlN as a remarkable choice to traditional ceramic substrates such as alumina and beryllium oxide. This post explores the basic attributes of aluminum nitride ceramics, explores construction strategies, and highlights its vital duties across advanced technological domains.

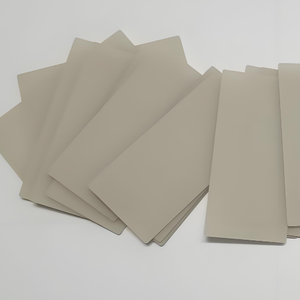

(Aluminum Nitride Ceramics)

Crystal Framework and Basic Feature

The efficiency of light weight aluminum nitride as a substratum product is mainly determined by its crystalline framework and intrinsic physical homes. AlN adopts a wurtzite-type latticework made up of rotating light weight aluminum and nitrogen atoms, which contributes to its high thermal conductivity– usually exceeding 180 W/(m · K), with some high-purity examples accomplishing over 320 W/(m · K). This worth substantially exceeds those of various other extensively used ceramic products, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).

In addition to its thermal performance, AlN possesses a vast bandgap of approximately 6.2 eV, resulting in superb electric insulation properties also at high temperatures. It likewise demonstrates low thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which closely matches that of silicon and gallium arsenide, making it an optimal match for semiconductor gadget product packaging. Additionally, AlN displays high chemical inertness and resistance to molten steels, enhancing its suitability for rough settings. These mixed features establish AlN as a leading prospect for high-power digital substratums and thermally took care of systems.

Construction and Sintering Technologies

Producing high-grade aluminum nitride porcelains needs accurate powder synthesis and sintering strategies to attain dense microstructures with minimal contaminations. Due to its covalent bonding nature, AlN does not quickly compress via traditional pressureless sintering. Consequently, sintering help such as yttrium oxide (Y TWO O FIVE), calcium oxide (CaO), or uncommon planet elements are generally contributed to advertise liquid-phase sintering and boost grain limit diffusion.

The fabrication procedure generally starts with the carbothermal decrease of light weight aluminum oxide in a nitrogen environment to synthesize AlN powders. These powders are after that grated, shaped via techniques like tape casting or shot molding, and sintered at temperature levels in between 1700 ° C and 1900 ° C under a nitrogen-rich environment. Warm pushing or stimulate plasma sintering (SPS) can even more improve thickness and thermal conductivity by minimizing porosity and advertising grain positioning. Advanced additive manufacturing strategies are also being explored to fabricate complex-shaped AlN components with customized thermal monitoring capabilities.

Application in Electronic Product Packaging and Power Modules

Among the most famous uses of aluminum nitride porcelains is in electronic product packaging, particularly for high-power gadgets such as insulated gateway bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power densities increase in modern-day electronic devices, reliable heat dissipation becomes crucial to make certain integrity and longevity. AlN substrates supply an optimal solution by combining high thermal conductivity with excellent electrical seclusion, stopping brief circuits and thermal runaway problems.

Furthermore, AlN-based straight bonded copper (DBC) and energetic metal brazed (AMB) substratums are increasingly utilized in power component designs for electric cars, renewable energy inverters, and commercial motor drives. Contrasted to traditional alumina or silicon nitride substratums, AlN uses much faster warmth transfer and better compatibility with silicon chip coefficients of thermal growth, thus minimizing mechanical tension and boosting general system performance. Continuous research study aims to enhance the bonding toughness and metallization strategies on AlN surfaces to further increase its application range.

Usage in Optoelectronic and High-Temperature Tools

Past electronic product packaging, aluminum nitride porcelains play a crucial duty in optoelectronic and high-temperature applications as a result of their openness to ultraviolet (UV) radiation and thermal security. AlN is commonly used as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications needing sterilization, noticing, and optical communication. Its wide bandgap and reduced absorption coefficient in the UV range make it an ideal candidate for supporting aluminum gallium nitride (AlGaN)-based heterostructures.

Additionally, AlN’s capacity to operate accurately at temperatures going beyond 1000 ° C makes it suitable for usage in sensing units, thermoelectric generators, and components subjected to extreme thermal lots. In aerospace and protection sectors, AlN-based sensing unit plans are used in jet engine tracking systems and high-temperature control units where traditional materials would fall short. Continual advancements in thin-film deposition and epitaxial growth techniques are increasing the capacity of AlN in next-generation optoelectronic and high-temperature integrated systems.

( Aluminum Nitride Ceramics)

Environmental Stability and Long-Term Dependability

An essential factor to consider for any substrate product is its lasting integrity under operational anxieties. Aluminum nitride shows superior environmental security compared to many various other porcelains. It is very immune to rust from acids, alkalis, and molten metals, guaranteeing durability in aggressive chemical environments. Nonetheless, AlN is susceptible to hydrolysis when subjected to moisture at elevated temperature levels, which can deteriorate its surface area and lower thermal performance.

To alleviate this problem, protective layers such as silicon nitride (Si ₃ N FOUR), light weight aluminum oxide, or polymer-based encapsulation layers are typically related to boost wetness resistance. Furthermore, careful sealing and product packaging techniques are implemented throughout tool setting up to preserve the honesty of AlN substratums throughout their service life. As environmental regulations end up being much more stringent, the safe nature of AlN also places it as a favored option to beryllium oxide, which poses health dangers throughout processing and disposal.

Verdict

Aluminum nitride ceramics stand for a course of sophisticated products distinctively matched to deal with the growing needs for reliable thermal administration and electrical insulation in high-performance electronic and optoelectronic systems. Their exceptional thermal conductivity, chemical stability, and compatibility with semiconductor technologies make them one of the most optimal substrate product for a wide variety of applications– from vehicle power modules to deep UV LEDs and high-temperature sensors. As fabrication innovations continue to develop and affordable production approaches grow, the fostering of AlN substrates is expected to increase substantially, driving advancement in next-generation electronic and photonic tools.
