1. Make-up and Structural Properties of Fused Quartz
1.1 Amorphous Network and Thermal Stability

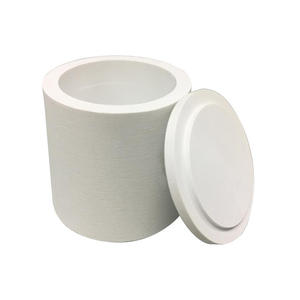

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from integrated silica, a synthetic kind of silicon dioxide (SiO ₂) derived from the melting of natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, fused silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which imparts phenomenal thermal shock resistance and dimensional stability under fast temperature changes.
This disordered atomic framework stops cleavage along crystallographic airplanes, making fused silica much less susceptible to cracking during thermal cycling compared to polycrystalline porcelains.
The product shows a low coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), one of the most affordable amongst design materials, allowing it to stand up to extreme thermal slopes without fracturing– a crucial residential or commercial property in semiconductor and solar cell manufacturing.
Integrated silica also preserves excellent chemical inertness against most acids, molten steels, and slags, although it can be gradually etched by hydrofluoric acid and hot phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, depending upon pureness and OH web content) enables sustained procedure at elevated temperatures required for crystal development and steel refining procedures.
1.2 Pureness Grading and Trace Element Control
The efficiency of quartz crucibles is extremely depending on chemical pureness, specifically the concentration of metal contaminations such as iron, salt, potassium, aluminum, and titanium.
Also trace quantities (components per million level) of these pollutants can migrate right into liquified silicon throughout crystal growth, deteriorating the electric properties of the resulting semiconductor material.
High-purity qualities utilized in electronics making normally consist of over 99.95% SiO ₂, with alkali metal oxides limited to less than 10 ppm and shift metals below 1 ppm.
Impurities stem from raw quartz feedstock or handling tools and are decreased through cautious selection of mineral resources and purification methods like acid leaching and flotation protection.
Additionally, the hydroxyl (OH) web content in merged silica influences its thermomechanical habits; high-OH types use far better UV transmission however reduced thermal stability, while low-OH variations are preferred for high-temperature applications because of minimized bubble formation.

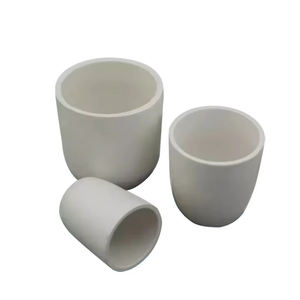

( Quartz Crucibles)
2. Production Refine and Microstructural Design
2.1 Electrofusion and Developing Strategies
Quartz crucibles are mainly created through electrofusion, a procedure in which high-purity quartz powder is fed into a revolving graphite mold and mildew within an electrical arc heater.
An electric arc generated between carbon electrodes melts the quartz fragments, which solidify layer by layer to develop a smooth, thick crucible shape.
This method produces a fine-grained, uniform microstructure with very little bubbles and striae, important for uniform warmth circulation and mechanical integrity.
Alternative techniques such as plasma blend and fire fusion are utilized for specialized applications requiring ultra-low contamination or certain wall surface density accounts.
After casting, the crucibles undertake regulated cooling (annealing) to alleviate inner tensions and stop spontaneous breaking during service.
Surface area completing, consisting of grinding and polishing, makes certain dimensional precision and minimizes nucleation websites for undesirable crystallization throughout use.
2.2 Crystalline Layer Design and Opacity Control
A specifying function of modern quartz crucibles, specifically those used in directional solidification of multicrystalline silicon, is the engineered inner layer structure.
Throughout production, the internal surface is commonly dealt with to advertise the formation of a slim, controlled layer of cristobalite– a high-temperature polymorph of SiO ₂– upon first heating.
This cristobalite layer works as a diffusion barrier, lowering straight communication in between liquified silicon and the underlying fused silica, thereby lessening oxygen and metal contamination.
Moreover, the visibility of this crystalline stage boosts opacity, boosting infrared radiation absorption and promoting even more uniform temperature level circulation within the thaw.
Crucible developers carefully stabilize the thickness and connection of this layer to avoid spalling or splitting because of volume modifications during stage shifts.
3. Useful Performance in High-Temperature Applications
3.1 Role in Silicon Crystal Development Processes
Quartz crucibles are essential in the manufacturing of monocrystalline and multicrystalline silicon, functioning as the main container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped into molten silicon kept in a quartz crucible and slowly drew up while turning, permitting single-crystal ingots to form.
Although the crucible does not directly call the expanding crystal, interactions in between liquified silicon and SiO two walls lead to oxygen dissolution into the melt, which can influence provider lifetime and mechanical strength in ended up wafers.
In DS processes for photovoltaic-grade silicon, large quartz crucibles enable the regulated cooling of thousands of kgs of liquified silicon into block-shaped ingots.
Here, coverings such as silicon nitride (Si four N ₄) are applied to the inner surface to avoid attachment and facilitate simple launch of the solidified silicon block after cooling.
3.2 Deterioration Systems and Service Life Limitations
Despite their toughness, quartz crucibles weaken during duplicated high-temperature cycles due to several related systems.
Viscous circulation or contortion happens at long term direct exposure over 1400 ° C, resulting in wall surface thinning and loss of geometric stability.
Re-crystallization of fused silica right into cristobalite creates interior anxieties due to volume development, possibly triggering fractures or spallation that pollute the thaw.
Chemical erosion arises from reduction reactions in between liquified silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), producing volatile silicon monoxide that gets away and weakens the crucible wall.
Bubble development, driven by trapped gases or OH groups, better jeopardizes structural toughness and thermal conductivity.
These degradation pathways limit the variety of reuse cycles and require exact process control to make best use of crucible life expectancy and item return.
4. Arising Technologies and Technological Adaptations
4.1 Coatings and Composite Adjustments
To boost efficiency and toughness, progressed quartz crucibles incorporate useful finishings and composite frameworks.
Silicon-based anti-sticking layers and doped silica coverings boost launch attributes and decrease oxygen outgassing throughout melting.
Some producers incorporate zirconia (ZrO ₂) bits right into the crucible wall to boost mechanical stamina and resistance to devitrification.
Research is continuous right into fully transparent or gradient-structured crucibles created to enhance induction heat transfer in next-generation solar heater styles.
4.2 Sustainability and Recycling Challenges
With raising demand from the semiconductor and solar markets, lasting use quartz crucibles has actually ended up being a concern.
Spent crucibles contaminated with silicon deposit are difficult to reuse due to cross-contamination threats, causing substantial waste generation.
Efforts focus on developing reusable crucible linings, improved cleaning protocols, and closed-loop recycling systems to recuperate high-purity silica for second applications.
As tool effectiveness demand ever-higher product purity, the duty of quartz crucibles will certainly continue to progress through development in materials scientific research and process design.
In recap, quartz crucibles represent a crucial interface in between basic materials and high-performance digital items.
Their unique mix of purity, thermal resilience, and architectural style makes it possible for the fabrication of silicon-based modern technologies that power modern-day computing and renewable resource systems.
