1. Material Fundamentals and Crystal Chemistry
1.1 Structure and Polymorphic Structure

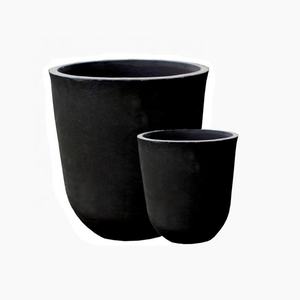

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its outstanding solidity, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks varying in stacking sequences– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technically relevant.
The strong directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) lead to a high melting factor (~ 2700 ° C), low thermal expansion (~ 4.0 × 10 ⁻⁶/ K), and excellent resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC lacks an indigenous lustrous stage, adding to its security in oxidizing and destructive environments approximately 1600 ° C.
Its broad bandgap (2.3– 3.3 eV, relying on polytype) also endows it with semiconductor residential or commercial properties, enabling twin usage in structural and digital applications.
1.2 Sintering Challenges and Densification Methods
Pure SiC is extremely challenging to compress because of its covalent bonding and low self-diffusion coefficients, necessitating making use of sintering help or innovative processing techniques.
Reaction-bonded SiC (RB-SiC) is created by penetrating permeable carbon preforms with liquified silicon, forming SiC in situ; this technique yields near-net-shape parts with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon additives to advertise densification at ~ 2000– 2200 ° C under inert ambience, accomplishing > 99% academic thickness and remarkable mechanical residential or commercial properties.
Liquid-phase sintered SiC (LPS-SiC) employs oxide ingredients such as Al Two O FIVE– Y TWO O ₃, developing a transient fluid that boosts diffusion but may lower high-temperature toughness as a result of grain-boundary stages.
Hot pressing and stimulate plasma sintering (SPS) supply quick, pressure-assisted densification with fine microstructures, perfect for high-performance parts needing very little grain growth.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Stamina, Firmness, and Wear Resistance
Silicon carbide porcelains exhibit Vickers solidity worths of 25– 30 Grade point average, 2nd only to diamond and cubic boron nitride amongst engineering materials.
Their flexural stamina generally ranges from 300 to 600 MPa, with crack durability (K_IC) of 3– 5 MPa · m ¹/ ²– moderate for ceramics but boosted via microstructural engineering such as whisker or fiber reinforcement.
The combination of high firmness and elastic modulus (~ 410 GPa) makes SiC incredibly resistant to abrasive and erosive wear, outshining tungsten carbide and hardened steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In commercial applications such as pump seals, nozzles, and grinding media, SiC parts show life span numerous times longer than conventional choices.
Its low thickness (~ 3.1 g/cm THREE) further contributes to use resistance by lowering inertial pressures in high-speed revolving parts.
2.2 Thermal Conductivity and Stability
One of SiC’s most distinguishing functions is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline types, and approximately 490 W/(m · K) for single-crystal 4H-SiC– going beyond most metals other than copper and light weight aluminum.
This building enables efficient warmth dissipation in high-power electronic substrates, brake discs, and warm exchanger elements.
Coupled with reduced thermal development, SiC exhibits outstanding thermal shock resistance, quantified by the R-parameter (σ(1– ν)k/ αE), where high values indicate strength to quick temperature modifications.
For instance, SiC crucibles can be heated up from space temperature to 1400 ° C in mins without cracking, a feat unattainable for alumina or zirconia in comparable conditions.
In addition, SiC maintains strength approximately 1400 ° C in inert environments, making it suitable for heating system fixtures, kiln furniture, and aerospace parts subjected to severe thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Habits in Oxidizing and Lowering Environments
At temperature levels listed below 800 ° C, SiC is very stable in both oxidizing and reducing atmospheres.
Above 800 ° C in air, a protective silica (SiO TWO) layer kinds on the surface by means of oxidation (SiC + 3/2 O ₂ → SiO TWO + CARBON MONOXIDE), which passivates the product and slows down more deterioration.
Nevertheless, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)₄, resulting in sped up economic downturn– a crucial consideration in turbine and combustion applications.
In lowering environments or inert gases, SiC stays stable approximately its disintegration temperature (~ 2700 ° C), with no phase changes or strength loss.
This security makes it appropriate for molten steel handling, such as aluminum or zinc crucibles, where it withstands moistening and chemical attack far much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is essentially inert to all acids other than hydrofluoric acid (HF) and solid oxidizing acid blends (e.g., HF– HNO SIX).
It shows outstanding resistance to alkalis up to 800 ° C, though prolonged direct exposure to thaw NaOH or KOH can trigger surface etching using formation of soluble silicates.
In liquified salt environments– such as those in concentrated solar power (CSP) or atomic power plants– SiC shows exceptional rust resistance compared to nickel-based superalloys.
This chemical toughness underpins its use in chemical process tools, consisting of shutoffs, liners, and warmth exchanger tubes taking care of hostile media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Arising Frontiers
4.1 Established Uses in Energy, Defense, and Manufacturing
Silicon carbide ceramics are important to countless high-value industrial systems.
In the energy field, they serve as wear-resistant linings in coal gasifiers, parts in nuclear gas cladding (SiC/SiC composites), and substratums for high-temperature strong oxide gas cells (SOFCs).
Protection applications include ballistic shield plates, where SiC’s high hardness-to-density ratio supplies premium defense against high-velocity projectiles compared to alumina or boron carbide at reduced price.
In manufacturing, SiC is utilized for precision bearings, semiconductor wafer taking care of components, and rough blowing up nozzles as a result of its dimensional security and pureness.
Its use in electric automobile (EV) inverters as a semiconductor substratum is quickly expanding, driven by efficiency gains from wide-bandgap electronics.
4.2 Next-Generation Advancements and Sustainability
Ongoing study concentrates on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which exhibit pseudo-ductile actions, improved toughness, and retained toughness above 1200 ° C– ideal for jet engines and hypersonic car leading edges.
Additive production of SiC via binder jetting or stereolithography is progressing, making it possible for intricate geometries previously unattainable through conventional developing methods.
From a sustainability perspective, SiC’s durability lowers substitute frequency and lifecycle exhausts in industrial systems.
Recycling of SiC scrap from wafer cutting or grinding is being created through thermal and chemical recovery processes to redeem high-purity SiC powder.
As markets push toward higher performance, electrification, and extreme-environment operation, silicon carbide-based porcelains will certainly stay at the forefront of sophisticated materials engineering, connecting the space in between structural strength and practical flexibility.
