1. Material Foundations and Synergistic Layout
1.1 Innate Properties of Component Phases

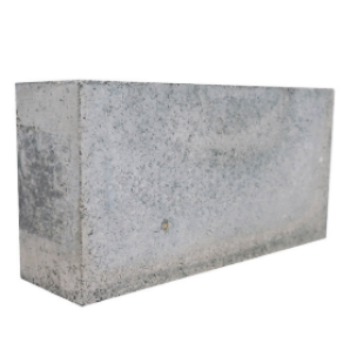

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si two N ₄) and silicon carbide (SiC) are both covalently bound, non-oxide ceramics renowned for their exceptional performance in high-temperature, destructive, and mechanically demanding settings.
Silicon nitride exhibits outstanding crack sturdiness, thermal shock resistance, and creep stability due to its unique microstructure composed of extended β-Si three N four grains that allow fracture deflection and linking mechanisms.
It preserves stamina up to 1400 ° C and possesses a reasonably low thermal expansion coefficient (~ 3.2 × 10 ⁻⁶/ K), decreasing thermal stresses throughout quick temperature adjustments.
On the other hand, silicon carbide provides superior solidity, thermal conductivity (up to 120– 150 W/(m · K )for single crystals), oxidation resistance, and chemical inertness, making it suitable for rough and radiative warmth dissipation applications.
Its large bandgap (~ 3.3 eV for 4H-SiC) likewise provides exceptional electrical insulation and radiation tolerance, useful in nuclear and semiconductor contexts.
When integrated into a composite, these products exhibit complementary behaviors: Si ₃ N four enhances durability and damages tolerance, while SiC enhances thermal administration and use resistance.
The resulting crossbreed ceramic achieves a balance unattainable by either stage alone, developing a high-performance architectural product customized for extreme service problems.
1.2 Compound Architecture and Microstructural Design
The style of Si three N ₄– SiC composites involves accurate control over phase distribution, grain morphology, and interfacial bonding to make the most of synergistic effects.
Commonly, SiC is introduced as great particulate support (varying from submicron to 1 µm) within a Si six N four matrix, although functionally graded or split designs are also discovered for specialized applications.
Throughout sintering– usually using gas-pressure sintering (GENERAL PRACTITIONER) or warm pushing– SiC fragments affect the nucleation and development kinetics of β-Si ₃ N ₄ grains, often promoting finer and even more evenly oriented microstructures.
This refinement enhances mechanical homogeneity and lowers imperfection size, contributing to better toughness and reliability.
Interfacial compatibility between the two stages is important; due to the fact that both are covalent ceramics with comparable crystallographic symmetry and thermal growth habits, they form coherent or semi-coherent limits that stand up to debonding under tons.
Ingredients such as yttria (Y ₂ O SIX) and alumina (Al two O FOUR) are utilized as sintering help to promote liquid-phase densification of Si five N ₄ without compromising the security of SiC.
Nonetheless, excessive additional phases can degrade high-temperature efficiency, so structure and handling need to be maximized to reduce glazed grain limit movies.
2. Processing Strategies and Densification Challenges

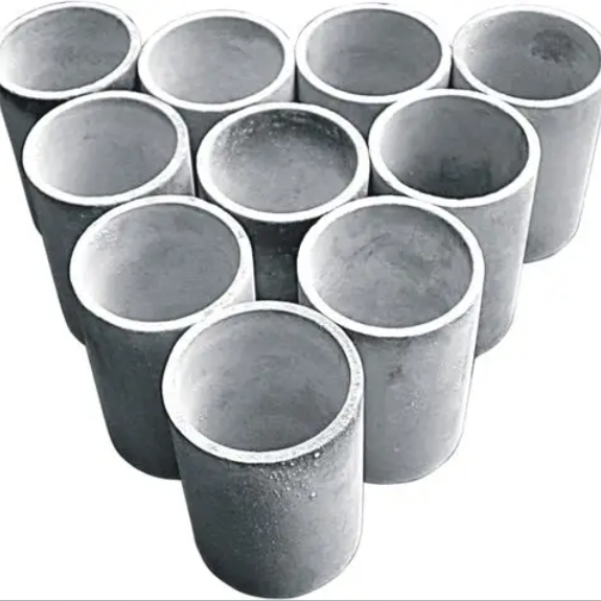

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Methods
Top Notch Si Six N ₄– SiC composites begin with homogeneous blending of ultrafine, high-purity powders making use of damp round milling, attrition milling, or ultrasonic diffusion in organic or aqueous media.
Attaining consistent dispersion is critical to prevent pile of SiC, which can serve as anxiety concentrators and reduce fracture sturdiness.
Binders and dispersants are contributed to stabilize suspensions for forming techniques such as slip casting, tape casting, or injection molding, depending on the preferred component geometry.
Green bodies are after that very carefully dried and debound to eliminate organics before sintering, a process requiring regulated heating rates to avoid cracking or deforming.
For near-net-shape manufacturing, additive techniques like binder jetting or stereolithography are emerging, enabling complicated geometries formerly unattainable with standard ceramic processing.
These approaches need customized feedstocks with maximized rheology and green stamina, often entailing polymer-derived porcelains or photosensitive resins packed with composite powders.
2.2 Sintering Mechanisms and Phase Security
Densification of Si Four N ₄– SiC composites is testing because of the solid covalent bonding and minimal self-diffusion of nitrogen and carbon at functional temperature levels.
Liquid-phase sintering making use of rare-earth or alkaline earth oxides (e.g., Y ₂ O FOUR, MgO) reduces the eutectic temperature and boosts mass transportation with a short-term silicate melt.
Under gas pressure (commonly 1– 10 MPa N TWO), this melt facilitates rearrangement, solution-precipitation, and last densification while reducing decay of Si six N ₄.
The existence of SiC influences viscosity and wettability of the fluid phase, potentially modifying grain development anisotropy and final structure.
Post-sintering warmth therapies may be put on crystallize residual amorphous stages at grain borders, boosting high-temperature mechanical homes and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are routinely utilized to validate phase pureness, absence of unfavorable additional phases (e.g., Si two N TWO O), and uniform microstructure.
3. Mechanical and Thermal Performance Under Tons
3.1 Toughness, Toughness, and Tiredness Resistance
Si Two N ₄– SiC composites show premium mechanical efficiency contrasted to monolithic porcelains, with flexural toughness surpassing 800 MPa and fracture toughness values reaching 7– 9 MPa · m 1ST/ TWO.
The enhancing impact of SiC particles restrains dislocation motion and fracture propagation, while the extended Si three N ₄ grains remain to supply strengthening with pull-out and linking devices.
This dual-toughening technique leads to a material highly immune to influence, thermal biking, and mechanical tiredness– vital for rotating parts and architectural elements in aerospace and power systems.
Creep resistance continues to be superb as much as 1300 ° C, credited to the security of the covalent network and decreased grain boundary moving when amorphous phases are reduced.
Hardness worths usually vary from 16 to 19 Grade point average, offering outstanding wear and erosion resistance in abrasive environments such as sand-laden flows or gliding contacts.
3.2 Thermal Management and Ecological Sturdiness
The enhancement of SiC significantly raises the thermal conductivity of the composite, usually doubling that of pure Si five N ₄ (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) relying on SiC web content and microstructure.
This enhanced heat transfer capacity permits much more reliable thermal monitoring in elements exposed to extreme localized home heating, such as combustion linings or plasma-facing components.
The composite maintains dimensional security under high thermal gradients, standing up to spallation and breaking due to matched thermal growth and high thermal shock specification (R-value).
Oxidation resistance is another key advantage; SiC creates a safety silica (SiO ₂) layer upon exposure to oxygen at raised temperatures, which additionally densifies and secures surface issues.
This passive layer protects both SiC and Si Three N ₄ (which also oxidizes to SiO ₂ and N ₂), making sure long-term sturdiness in air, heavy steam, or combustion environments.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Power, and Industrial Solution
Si Four N FOUR– SiC composites are increasingly deployed in next-generation gas wind turbines, where they allow higher operating temperature levels, boosted gas effectiveness, and minimized cooling demands.
Elements such as generator blades, combustor liners, and nozzle guide vanes take advantage of the product’s capability to hold up against thermal biking and mechanical loading without significant deterioration.
In atomic power plants, especially high-temperature gas-cooled reactors (HTGRs), these composites act as fuel cladding or architectural supports as a result of their neutron irradiation resistance and fission item retention capability.
In commercial setups, they are utilized in molten steel handling, kiln furniture, and wear-resistant nozzles and bearings, where conventional steels would certainly fall short too soon.
Their light-weight nature (density ~ 3.2 g/cm TWO) likewise makes them eye-catching for aerospace propulsion and hypersonic lorry parts based on aerothermal home heating.
4.2 Advanced Production and Multifunctional Assimilation
Emerging research study concentrates on developing functionally rated Si four N ₄– SiC structures, where make-up varies spatially to enhance thermal, mechanical, or electromagnetic homes throughout a single component.
Crossbreed systems including CMC (ceramic matrix composite) architectures with fiber support (e.g., SiC_f/ SiC– Si Two N FOUR) push the limits of damages tolerance and strain-to-failure.
Additive manufacturing of these compounds enables topology-optimized warm exchangers, microreactors, and regenerative air conditioning networks with internal lattice frameworks unachievable through machining.
Furthermore, their intrinsic dielectric buildings and thermal security make them prospects for radar-transparent radomes and antenna windows in high-speed systems.
As demands expand for products that do accurately under severe thermomechanical tons, Si three N ₄– SiC compounds stand for a pivotal innovation in ceramic design, combining effectiveness with performance in a single, sustainable platform.
Finally, silicon nitride– silicon carbide composite porcelains exhibit the power of materials-by-design, leveraging the strengths of 2 sophisticated porcelains to create a hybrid system efficient in prospering in the most serious operational environments.
Their continued advancement will play a central function ahead of time clean energy, aerospace, and commercial modern technologies in the 21st century.
