1. Basic Structure and Structural Style of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Defining the Material Course

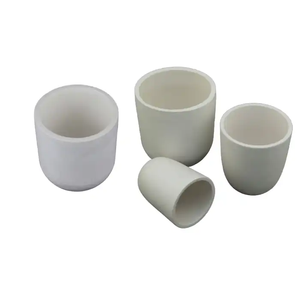

(Transparent Ceramics)
Quartz ceramics, additionally known as fused quartz or integrated silica porcelains, are advanced not natural products derived from high-purity crystalline quartz (SiO ₂) that undertake regulated melting and consolidation to develop a dense, non-crystalline (amorphous) or partially crystalline ceramic framework.
Unlike traditional ceramics such as alumina or zirconia, which are polycrystalline and made up of several phases, quartz porcelains are predominantly composed of silicon dioxide in a network of tetrahedrally worked with SiO ₄ units, offering extraordinary chemical pureness– usually going beyond 99.9% SiO TWO.
The distinction between fused quartz and quartz porcelains depends on handling: while fused quartz is commonly a completely amorphous glass created by rapid cooling of molten silica, quartz porcelains might include controlled formation (devitrification) or sintering of fine quartz powders to attain a fine-grained polycrystalline or glass-ceramic microstructure with enhanced mechanical toughness.
This hybrid method integrates the thermal and chemical security of integrated silica with enhanced fracture toughness and dimensional security under mechanical load.
1.2 Thermal and Chemical Security Devices
The phenomenal efficiency of quartz ceramics in extreme settings originates from the solid covalent Si– O bonds that form a three-dimensional connect with high bond energy (~ 452 kJ/mol), conferring exceptional resistance to thermal destruction and chemical strike.
These products show a very reduced coefficient of thermal expansion– around 0.55 × 10 ⁻⁶/ K over the variety 20– 300 ° C– making them highly immune to thermal shock, an important quality in applications involving rapid temperature level cycling.
They maintain architectural integrity from cryogenic temperatures up to 1200 ° C in air, and also greater in inert environments, before softening starts around 1600 ° C.
Quartz ceramics are inert to the majority of acids, including hydrochloric, nitric, and sulfuric acids, as a result of the stability of the SiO two network, although they are susceptible to assault by hydrofluoric acid and strong alkalis at raised temperature levels.
This chemical durability, combined with high electric resistivity and ultraviolet (UV) transparency, makes them optimal for usage in semiconductor processing, high-temperature heating systems, and optical systems exposed to extreme conditions.
2. Production Processes and Microstructural Control
( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The manufacturing of quartz porcelains involves innovative thermal handling methods designed to preserve purity while achieving desired density and microstructure.
One typical technique is electrical arc melting of high-purity quartz sand, complied with by regulated cooling to develop integrated quartz ingots, which can then be machined into elements.
For sintered quartz porcelains, submicron quartz powders are compressed by means of isostatic pressing and sintered at temperature levels in between 1100 ° C and 1400 ° C, frequently with marginal ingredients to advertise densification without inducing extreme grain development or phase makeover.
A crucial obstacle in processing is staying clear of devitrification– the spontaneous formation of metastable silica glass into cristobalite or tridymite phases– which can endanger thermal shock resistance due to volume modifications throughout stage changes.
Manufacturers utilize accurate temperature control, fast cooling cycles, and dopants such as boron or titanium to subdue unwanted crystallization and preserve a secure amorphous or fine-grained microstructure.
2.2 Additive Production and Near-Net-Shape Fabrication
Recent developments in ceramic additive manufacturing (AM), specifically stereolithography (SLA) and binder jetting, have actually made it possible for the fabrication of complicated quartz ceramic elements with high geometric precision.
In these processes, silica nanoparticles are suspended in a photosensitive resin or selectively bound layer-by-layer, adhered to by debinding and high-temperature sintering to accomplish complete densification.
This strategy lowers material waste and permits the production of elaborate geometries– such as fluidic networks, optical tooth cavities, or heat exchanger elements– that are difficult or impossible to achieve with standard machining.
Post-processing techniques, including chemical vapor seepage (CVI) or sol-gel covering, are occasionally put on secure surface area porosity and improve mechanical and ecological resilience.
These technologies are broadening the application extent of quartz ceramics into micro-electromechanical systems (MEMS), lab-on-a-chip devices, and personalized high-temperature components.
3. Functional Features and Performance in Extreme Environments
3.1 Optical Openness and Dielectric Habits
Quartz ceramics show one-of-a-kind optical residential or commercial properties, consisting of high transmission in the ultraviolet, visible, and near-infrared range (from ~ 180 nm to 2500 nm), making them crucial in UV lithography, laser systems, and space-based optics.
This openness arises from the lack of electronic bandgap transitions in the UV-visible array and minimal spreading as a result of homogeneity and low porosity.
Furthermore, they possess outstanding dielectric residential or commercial properties, with a low dielectric constant (~ 3.8 at 1 MHz) and very little dielectric loss, enabling their usage as protecting components in high-frequency and high-power electronic systems, such as radar waveguides and plasma activators.
Their capacity to keep electrical insulation at elevated temperature levels further boosts integrity in demanding electrical settings.
3.2 Mechanical Actions and Long-Term Resilience
In spite of their high brittleness– an usual attribute among porcelains– quartz ceramics show excellent mechanical toughness (flexural strength as much as 100 MPa) and superb creep resistance at high temperatures.
Their hardness (around 5.5– 6.5 on the Mohs range) supplies resistance to surface abrasion, although care must be taken during handling to stay clear of cracking or fracture breeding from surface flaws.
Environmental longevity is another vital benefit: quartz porcelains do not outgas considerably in vacuum, withstand radiation damages, and maintain dimensional stability over long term exposure to thermal cycling and chemical environments.
This makes them favored materials in semiconductor construction chambers, aerospace sensors, and nuclear instrumentation where contamination and failure have to be reduced.
4. Industrial, Scientific, and Emerging Technological Applications
4.1 Semiconductor and Photovoltaic Production Equipments
In the semiconductor industry, quartz porcelains are ubiquitous in wafer processing devices, consisting of furnace tubes, bell jars, susceptors, and shower heads used in chemical vapor deposition (CVD) and plasma etching.
Their pureness stops metal contamination of silicon wafers, while their thermal stability makes sure uniform temperature level distribution during high-temperature processing steps.
In photovoltaic manufacturing, quartz parts are utilized in diffusion furnaces and annealing systems for solar cell manufacturing, where constant thermal profiles and chemical inertness are crucial for high yield and efficiency.
The demand for larger wafers and greater throughput has driven the growth of ultra-large quartz ceramic structures with improved homogeneity and lowered problem thickness.
4.2 Aerospace, Defense, and Quantum Modern Technology Combination
Beyond industrial handling, quartz porcelains are used in aerospace applications such as missile support windows, infrared domes, and re-entry car elements because of their capacity to hold up against severe thermal gradients and wind resistant anxiety.
In defense systems, their openness to radar and microwave regularities makes them ideal for radomes and sensing unit housings.
More recently, quartz porcelains have actually discovered functions in quantum technologies, where ultra-low thermal development and high vacuum cleaner compatibility are needed for accuracy optical tooth cavities, atomic catches, and superconducting qubit enclosures.
Their ability to decrease thermal drift makes certain lengthy coherence times and high dimension precision in quantum computing and picking up platforms.
In recap, quartz porcelains represent a class of high-performance materials that bridge the space between conventional ceramics and specialized glasses.
Their unrivaled combination of thermal stability, chemical inertness, optical transparency, and electric insulation allows modern technologies operating at the limitations of temperature, purity, and precision.
As making strategies advance and require expands for materials efficient in enduring significantly severe conditions, quartz porcelains will certainly remain to play a foundational role in advancing semiconductor, power, aerospace, and quantum systems.
